Construction of Cable

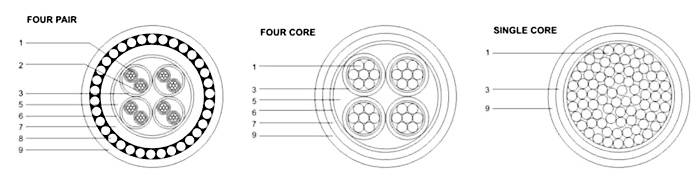

Construction
1 - Conductor
2 - Fire Barrier*
3 – Insulation
4 - Shield*
5 - Filler*
6 - Binder Tape*
7 - Bedding*
8 - Armour*/#
9 – Sheath

FR CABLES
Stranded annealed copper
Mica tape
LSZH Compound
Aluminium foil with tinned copper drain wire
LSF filler or polypropylene split yarn
Polyester tape or Polypropylene tape
Low smoke halogen free (LSZH) compound
Galvanised steel wire (aluminium or copper wire)
Low smoke halogen free (LSZH) compound

* Optional: Depending on requirement
# Braided armour also available on request




 Identification of cores:


No. of cores

Single

Two

Tree

Four

FIVE % above core

Pairs

Colour

Red
Black
Blue
Yellow
Green
or others
upon request

Red
and Black

Red
Yellow
and Blue

Red
Yellow,
Blue
Black

White
with
Black
numbering

White
with
Black
numbering



Note: Special construction and design to customers' specification can be provided upon request.
