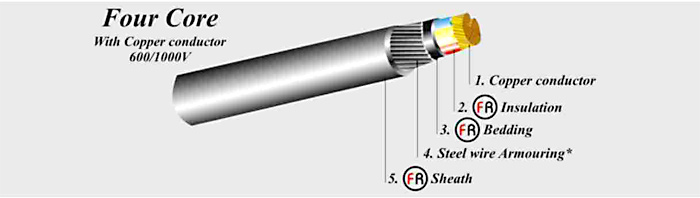

Four-Core


*Variety of other armouring options are also available.



DIMENSIONS AND WEIGHTS
Four CORE
STRANDED COPPER CONDUCTORS 600/1000 V
Unarmoured and armoured, over sheathed cables.

BS 6724


Nominal
Area of
Conductor

sq mm

Thickness
of
Insulation

mm

Unarmoured
Approximate
overall
diameter
mm

Unarmoured
Approximate
cable
weight
Kg/km

Armour
wire
diameter

mm

Armoured
Approximate
overall
diameter
mm

Armoured
Approximate
cable
weight
Kg/km

1.5*
2.5*
4*

6*
10*
16*

25**
35**
50**

70**
95**
120**

150**
185**
240**

300**

0.60
0.70
0.70

0.70
0.70
0.70

0.90
0.90
1.00

1.10
1.10
1.20

1.40
1.60
1.70

1.80

10.95
12.65
14.00

15.60
17.80
20.50

20.00
22.10
25.20

29.20
32.40
36.00

40.00
44.00
49.00

53.80

180
245
348

481
720
1009

1320
1735
2340

3226
4416
5495

6711
8370
10860

13411

0.90
0.90
0.90

1.25
1.25
1.25

1.60
1.60
1.60

2.00
2.00
2.00

2.50
2.50
2.50

2.50

13.30
15.00
16.40

18.70
21.10
23.40

26.10
28.60
32.00

37.70
41.70
47.10

51.40
56.60
63.00

68.80

321
432
373

839
1198
1690

2103
2565
3714

4695
6441
7806

9212
11139
14065

17000
