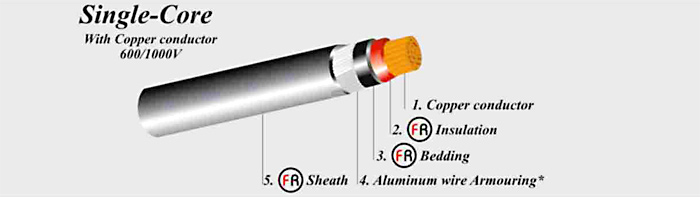

Single-Core

*Variety of other armouring options are also available.

DIMENSIONS AND WEIGHTS
SINGLE CORE
STRANDED COPPER CONDUCTORS 600/1000 V
Unarmoured and armoured, over sheathed cables.

BS 6724

Nominal Area of Conductor sq mm	Thickness of Insulation mm	Unarmoured Approximate overall diameter mm	Unarmoured Approximate cable weight Kg/km	Armour wire diameter mm	Armoured Approximate overall diameter mm	Armoured Approximate cable weight Kg/km
25 35 50 70 95 120 150 185 240 300 400 500 630	0.9 0.9 1.00 1.10 1.10 1.20 1.40 1.60 1.70 1.80 2.00 2.20 2.40	12.2 13.5 13.90 15.90 18.10 19.90 21.95 24.45 27.25 30.10 34.00 37.75 42.00	330 430 548 797 1083 1329 1622 1998 2491 3106 3977 5170 6511	- - 0.90 1.25 1.25 1.25 1.60 1.60 1.60 1.60 2.00 2.00 2.00	- - 17.50 20.20 22.30 24.20 27.40 30.00 32.80 35.60 4.50 44.20 48.80	- - 765 1006 1310 1665 1989 2405 3012 3695 4815 5902 7396

This exciting new product will change the way you think about cable construction, equipment protection and safety.

FR Cables are made using Fire resistant Halogen free compounds that provide many advantages over standard constructions of cable. Highly engineered polymers developed after years of research have produced a new generation of cable that has excellent electrical and mechanical characteristics, superior flame-resistance, low smoke production and reduced toxicity.
